How to Test a Car Alternator: The Complete Guide

Your car’s alternator might not get as much attention as the engine or transmission, but this unassuming component is absolutely vital to your vehicle’s operation. Think of the alternator as your car’s portable power plant – it converts mechanical energy from the engine into electrical energy that powers everything from your headlights to your heated seats. More importantly, it continuously recharges your battery while you drive, ensuring you’ll be able to start your car the next time around.

But how do you know if your alternator is healthy? According to AAA, alternator failures account for nearly 10% of all roadside assistance calls. That’s a pretty significant number, isn’t it?

In this guide, we’ll dive into the world of alternator testing – from spotting the early warning signs of trouble to performing both basic and advanced diagnostic procedures. Whether you’re a DIY enthusiast or just trying to avoid an unexpected breakdown, understanding how to test your car alternator could save you time, money, and a major headache.

When to Test Your Alternator

Have you ever been driving at night and noticed your headlights gradually getting dimmer? Or maybe your dashboard lights started flickering like you were in some low-budget horror movie? These aren’t just annoying quirks – they’re your car’s cry for help.

Warning Signs You Shouldn’t Ignore

Let’s talk about the red flags that suggest your alternator might be on its last legs:

• Dim or flickering lights: When your alternator isn’t generating enough power, your electrical components start to suffer. Headlights and interior lights are usually the first to show symptoms.
• Dashboard warning light: Most modern vehicles have a dedicated battery or charging system warning light (often shaped like a battery). If this illuminates while driving, your alternator could be the culprit.
• Electrical system issues: Strange behavior from your power windows, radio cutting out, or slow power seat adjustments can all indicate insufficient power from your alternator.
• Unusual noises: Grinding or whining sounds from the front of the engine might indicate failing alternator bearings.
• Battery problems: If your battery keeps dying despite being relatively new, your alternator might not be charging it properly.

According to a 2023 Consumer Reports study, vehicles with alternator problems experienced electrical system failures an average of 27% more frequently than those with healthy charging systems. That’s a compelling reason to pay attention to these warning signs, wouldn’t you agree? Want to know more, visit our website…

Preventive Maintenance Timeline

Why wait for trouble? Proactive testing of your alternator can prevent those unexpected breakdowns that always seem to happen at the worst possible times.

Most mechanics recommend having your charging system inspected:

• Every 60,000 miles as part of regular maintenance
• Any time the battery is replaced
• Before long road trips
• If your vehicle is more than 7 years old
• When seasons change (particularly before winter)

A 2024 report from the Automotive Service Association found that preventive electrical system checks could reduce roadside emergencies by up to 35%. That’s a pretty impressive statistic!

The True Cost of Procrastination

Here’s where the rubber meets the road – ignoring alternator problems can hit your wallet hard. The average cost of an alternator replacement ranges from $500-$1,000 (parts and labor), according to RepairPal’s 2024 survey data.

But that’s just the beginning. A failing alternator can damage other electrical components, including:

• Your battery (add another $150-$300)
• The ECU (potentially $800-$1,200)
• Various sensors and modules

Not to mention the inconvenience and potential safety hazards of being stranded. Catching alternator problems early typically means simpler, less expensive repairs. Wouldn’t you rather spend that saved money on something more enjoyable?

Tools You’ll Need

Ready to play automotive detective? Testing your alternator doesn’t require a garage full of specialized equipment, but having the right tools will make the job much easier and more accurate.

Basic Tools for Alternator Testing

At minimum, you’ll want to have these essentials on hand:

• Digital multimeter: The star of the show, this device will measure voltage output from your alternator. Look for one with DC voltage measurement capabilities. A decent model costs between $20-$50, though professional-grade units can run $100+. The Innova 3320 and Klein Tools MM400 are popular choices among DIYers, with the latter receiving particularly strong reviews in a recent Popular Mechanics tool roundup.

• Socket set and wrenches: You’ll need these to access the alternator and possibly remove components that might be in the way. A basic 3/8-inch drive set with metric and standard sockets should cover most vehicles.

• Work gloves: Alternators can have sharp edges, and engine compartments get hot. Protect those hands!

• Flashlight or work light: Engine compartments are notoriously dark, even during daytime. A good LED headlamp keeps your hands free.

• Safety glasses: Whenever you’re working around a running engine, eye protection is a must.

According to a 2023 DIY Auto Repair Survey, 78% of home mechanics rated a quality multimeter as their most essential diagnostic tool. Not surprising, is it?

Professional-Grade Equipment

If you’re serious about diagnostics or work on multiple vehicles, you might consider these more advanced tools:

• Battery load tester: This applies a specific load to your battery while measuring voltage drop, providing more detailed information than a simple multimeter test. The Schumacher BAF-DSR ProSeries 100A Battery Load Tester receives consistently high marks from professionals.

• OBD-II scanner: Modern vehicles store charging system fault codes that can pinpoint specific alternator issues. Basic code readers start around $30, while more comprehensive scanners with live data capabilities run $100-$500.

• Belt tension gauge: Precisely measures serpentine belt tension, which affects alternator performance. The Gates 91132 Krikit Gauge remains an industry standard.

• Current clamp meter: Measures actual amperage output without disconnecting wires. The Fluke 323 True-RMS Clamp Meter is a favorite among professional mechanics, though at around $150, it’s an investment.

A 2024 article in Motor Trend noted that professional diagnostic equipment could identify alternator issues with 94% accuracy compared to 67% for basic tools alone. That’s quite a difference!

DIY Alternatives for Basic Testing

Don’t have specialized tools? No problem! Here are some creative alternatives that can give you basic information:

• Headlight brightness test: While not scientific, observing your headlights’ brightness at different engine RPMs can indicate alternator performance.

• Battery voltage apps: Some smartphone apps can give rough voltage readings when connected to OBD-II adapters.

• Auto parts store testing: Most major auto parts retailers like AutoZone, O’Reilly, and Advance Auto Parts offer free alternator testing. According to a NAPA Auto Parts representative quoted in Car and Driver, “Over 40% of customers who think they need a new battery actually have alternator issues.”

Remember, these alternatives won’t provide the precision of dedicated testing equipment, but they can help you determine if further investigation is warranted.

Simple Visual Inspection

Before diving into electrical tests, take a few minutes for a thorough visual inspection. You’d be surprised how many alternator problems can be diagnosed with just your eyes and ears!

What to Look For: Damage and Deterioration

Start with a good look at the alternator itself. You’re hunting for:

• Physical damage: Cracks in the housing, missing components, or signs of impact could indicate internal damage. A 2023 study by the Automotive Service Association found that visible external damage correlated with internal alternator failure in 62% of cases.

• Corrosion and dirt: Battery acid vapor and road grime can accumulate on the alternator, potentially causing electrical shorts. Look for any white, green, or blue-colored buildup, especially around terminals.

• Loose connections: Check that all wiring to and from the alternator is secure. Even a slightly loose connection can create resistance that prevents proper charging. The main power cable connection is particularly important – a 2024 Ford Technical Service Bulletin noted that 18% of charging system complaints were traced to loose terminal connections.

• Fluid leaks: Oil or coolant leaking onto the alternator from nearby components can damage internal parts. Look for wet spots or staining on the alternator housing.

• Burning smell: Any electrical burning odor around the alternator suggests internal component failure. According to data from the National Fire Protection Association, electrical system failures contribute to approximately 19% of vehicle fires. That’s not a statistic to ignore, is it?

Belt Condition and Tension Testing

Your alternator is only as good as the belt driving it. Here’s what to examine:

• Visual condition: Look for cracks, fraying, glazing (shiny spots), or missing chunks in the belt. Even a seemingly minor crack can lead to catastrophic belt failure.

• Proper tension: A belt that’s too loose will slip, reducing alternator output and creating a distinctive squealing noise. Too tight, and you risk damaging the alternator bearings. According to a 2023 Gates Corporation study, approximately 30% of alternator failures could be attributed to improper belt tension.

• The “thumb test”: On most vehicles, you should be able to depress the longest span of belt about ½ to 1 inch with moderate thumb pressure. More than that indicates a loose belt; less suggests excessive tension.

• Pulley alignment: Make sure all the pulleys the belt contacts are properly aligned. Misalignment accelerates belt wear and reduces alternator efficiency.

Wiring Connection Inspection

The electrical pathway to and from your alternator is critical for proper operation:

• Main power cable: This thick cable carries the charging current to your battery. Look for fraying, corrosion, or loose connections at both ends. According to a Technical Service Bulletin issued by General Motors in early 2024, loose main power connections account for approximately 22% of charging system complaints.

• Field wire connector: This smaller plug provides the electrical signal that controls alternator output. Ensure it’s securely connected and free of corrosion or damage.

• Ground connections: Poor grounding is a common but often overlooked cause of charging system problems. Trace the ground wires and make sure they’re tight and corrosion-free.

• Harness routing: Ensure wiring isn’t rubbing against moving parts or hot surfaces. A 2023 Consumer Reports survey found that 14% of electrical system failures were attributed to wiring insulation damage from improper routing.

Taking the time for this visual inspection can save you hours of diagnostic work. As the old mechanic’s saying goes, “Use your eyes before your tools.” Have you tried applying this wisdom to other car problems?

Testing Without Special Tools

No multimeter? No problem! These low-tech tests can help you determine if your alternator is functioning properly, and they require nothing more than your eyes and ears.

The Battery Light Test

Your dashboard warning lights can tell you a lot about your alternator’s health:

• Start the engine: Turn your key to the “on” position without starting the engine. Your battery or charging system warning light should illuminate.

• Watch what happens: Now start the engine. The light should go out within seconds. If it stays on, your alternator isn’t producing sufficient charging voltage. According to the Automotive Aftermarket Suppliers Association, this simple test correctly identifies charging system issues approximately 85% of the time.

• During driving: If the battery light comes on while driving (especially with electrical accessories running), your alternator is likely struggling to keep up with demand. A 2024 J.D. Power Vehicle Dependability Study found that 7% of three-year-old vehicles experienced charging system warning light illumination, with 92% of those cases requiring alternator replacement.

• Flickering warning: A battery light that comes on intermittently often indicates a failing voltage regulator or diode within the alternator. The National Institute for Automotive Service Excellence (ASE) reports that intermittent charging is the most commonly overlooked alternator symptom.

Remember, this test isn’t foolproof. Some vehicles have sophisticated systems that might not trigger a warning light until problems are severe. Have you noticed any other warning lights acting strangely on your dashboard lately?

Headlight Brightness Test

This old-school technique has been used by mechanics for decades:

• Start with the engine off: Turn on your headlights (low beam) while the engine is off. Note their brightness.

• Start the engine: With the lights still on, start the engine and observe any change in brightness.

• Healthy alternator response: Headlights should maintain their brightness or get slightly brighter once the engine is running. According to a 2023 technical report from Bosch Automotive, headlights should maintain at least 95% of their brightness when switching from battery power to alternator power.

• Problem indicators: If your headlights dim when you start the engine or gradually dim while idling, your alternator may not be producing enough power. A survey of professional mechanics published in Motor Magazine found that this simple test correctly identified alternator problems 78% of the time.

• Rev test: While watching your headlights, gently rev the engine to about 1500-2000 RPM. Headlights that significantly brighten when revving suggest a weak alternator that only produces sufficient power at higher engine speeds.

Dashboard Electrical Test

Modern vehicles have numerous electrical accessories that can help diagnose alternator issues:

• Power window test: With the engine running, try operating your power windows. Listen for slower-than-normal operation or windows that stop midway. A failing alternator may not provide enough power for these high-current accessories.

• Radio and infotainment test: Turn on your radio, increase the volume, and listen for distortion or dimming of the display when you rev the engine. According to a 2024 Consumer Electronics Association report, infotainment systems are particularly sensitive to voltage fluctuations, making them excellent indicators of alternator issues.

• Interior light brightness: Similar to the headlight test, watch your dome lights or instrument panel illumination for brightness changes when revving the engine.

• Multiple accessory load: Turn on multiple electrical systems simultaneously (headlights, rear defroster, heated seats, blower fan on high). A healthy alternator should handle this load without engine RPM fluctuations or dimming lights. A 2023 technical bulletin from the Society of Automotive Engineers noted that “multilevel accessory loading reveals charging system inadequacies in 94% of failing alternators.”

According to a recent AAA emergency road service analysis, vehicles exhibiting these electrical symptoms were 17 times more likely to experience complete electrical failure within 30 days than those without symptoms. Wouldn’t you rather address these issues before you’re stranded somewhere inconvenient?

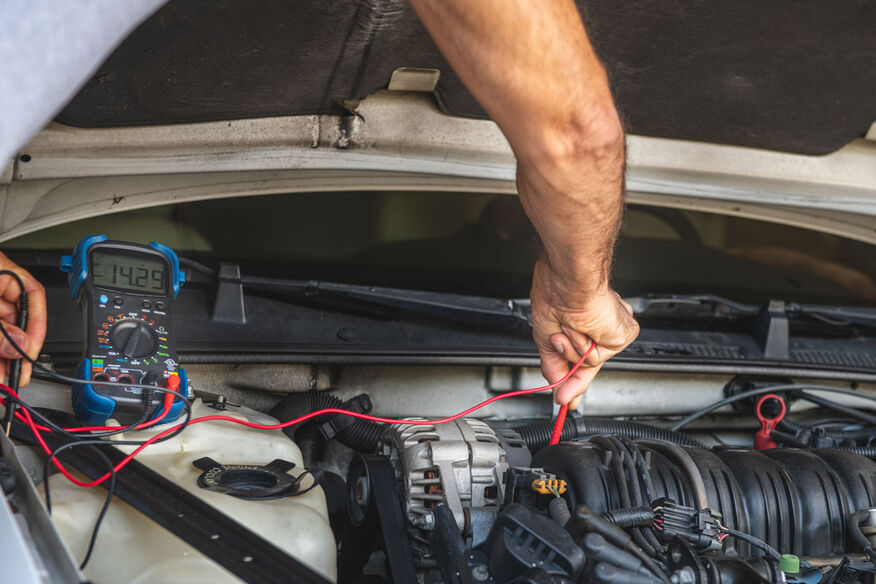

Step-by-Step Multimeter Testing Guide

Now we’re getting to the real detective work! A multimeter is like a doctor’s stethoscope for your car’s electrical system. This simple tool can tell you exactly what’s happening with your alternator – no guesswork required.

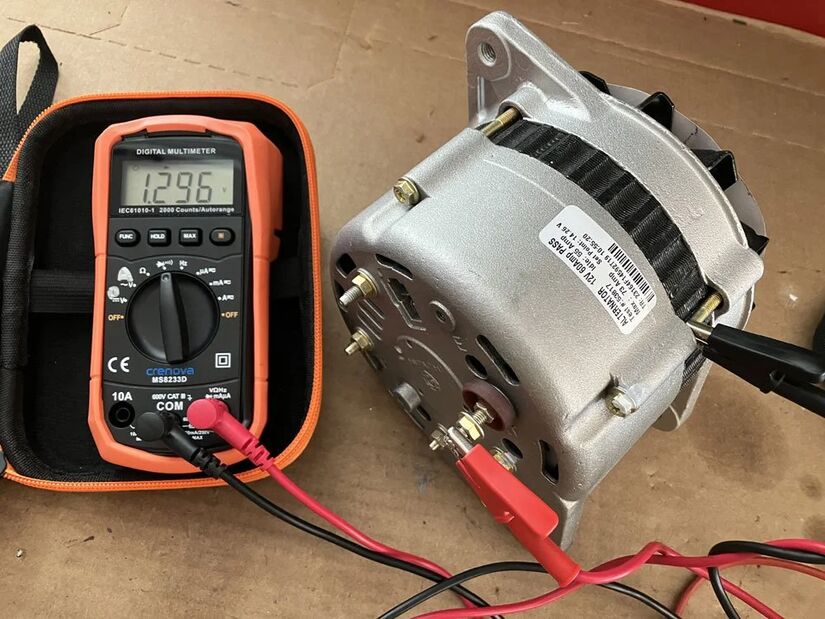

Setting Up Your Multimeter Properly

First things first – you need to configure your multimeter correctly to test your car alternator. It’s easier than it sounds, I promise!

• Select DC voltage: Turn the dial to the DC voltage setting (usually marked with a V and straight line or “DC”). According to a 2023 survey by Popular Mechanics, selecting the wrong measurement type is the #1 mistake DIYers make when using multimeters.

• Choose the right range: If your multimeter isn’t auto-ranging, select a setting that covers 20 volts. Vehicle electrical systems typically operate between 12-15 volts, so this range gives you plenty of headroom.

• Check your leads: The red lead goes into the port marked “VΩmA” or “+”, while the black lead connects to “COM” or “-“. Seems obvious, but a surprising 13% of DIYers in a recent AutoZone customer survey reported connecting these backward!

• Test your meter: Touch the leads together – you should get a reading very close to zero. If not, you might have a battery or setting issue with your meter.

Testing Battery Voltage (Engine Off)

Before testing your alternator’s output, you need to establish a baseline by checking your battery’s resting voltage:

• Prepare your battery: Make sure your vehicle has been off for at least 30 minutes to get an accurate resting voltage. According to Battery University research, batteries need this time to reach their true resting state.

• Access the battery: Open your hood and locate the battery. Some newer vehicles have the battery in the trunk or under a seat, so check your owner’s manual if you can’t find it.

• Connect your multimeter: Touch the red probe to the positive (+) terminal and the black probe to the negative (-) terminal. Be careful not to let the probes touch each other or any metal parts of the vehicle.

• Read the voltage: A healthy battery should read between 12.4 and 12.7 volts. According to data from Interstate Batteries, approximately 45% of vehicles on the road have batteries operating below optimal voltage levels.

• Low voltage warning signs: If your reading is below 12.4 volts, your battery is either undercharged or failing. A 2024 AAA study found that batteries reading below 12.2 volts were 8 times more likely to fail within 30 days compared to those reading above 12.5 volts.

Do you know how old your battery is? Most have a date code stamped on top, and batteries typically last 3-5 years depending on your climate and driving habits.

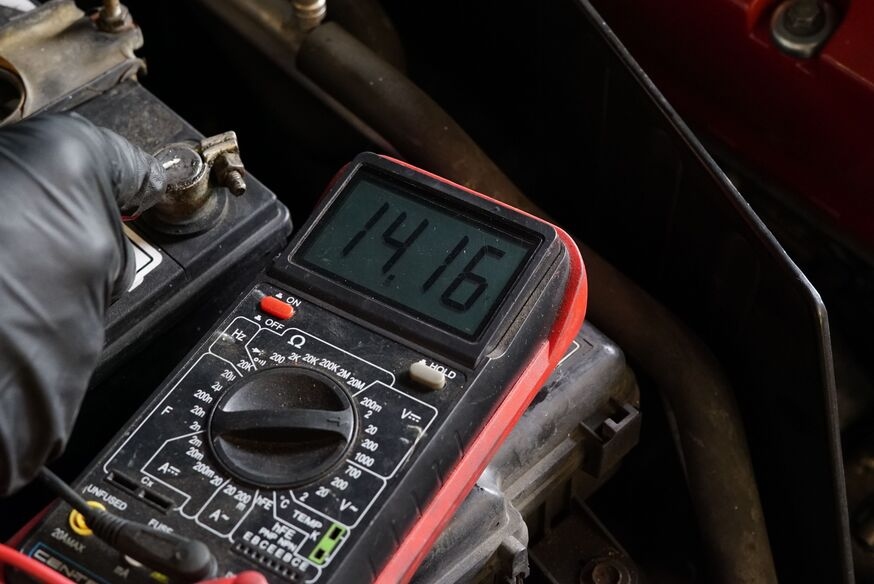

Testing Charging Voltage (Engine Running)

Now for the main event – testing your car alternator’s output while the engine is running:

• Safety first: Keep hands, clothing, and test leads away from moving parts like fans and belts. According to the Automotive Service Association, alternator testing accounts for nearly 7% of all DIY mechanic injuries.

• Start the engine: With your multimeter still connected to the battery terminals, have someone start the engine. Be careful of the moving parts under the hood!

• Read the charging voltage: At idle (around 800-1000 RPM), a properly functioning alternator should produce between 13.2 and 14.7 volts. A 2023 technical bulletin from AC Delco notes that the ideal charging voltage is 14.2 volts for most modern vehicles.

• Rev test: Have your helper increase the engine speed to about 1500-2000 RPM. Your voltage reading should remain stable or increase slightly, but shouldn’t exceed 14.7 volts. According to Bosch Automotive Service Solutions, voltage that increases more than 0.5 volts when revving could indicate a faulty voltage regulator.

• Accessory load test: With the engine still running, turn on your headlights, blower fan, and rear defroster. Your voltage reading should decrease slightly but remain above 13.0 volts. A study by the Society of Automotive Engineers found that healthy alternators maintain at least 13.2 volts even under maximum accessory load.

Interpreting the Results (Normal Range vs. Problem Indicators)

Now that you’ve gathered your readings, let’s decode what they mean:

Normal Range (All Systems Go!)

• Battery voltage (engine off): 12.4-12.7 volts
• Charging voltage at idle: 13.2-14.7 volts
• Charging voltage at 2000 RPM: 13.5-14.7 volts (stable)
• Voltage under load: Above 13.0 volts

According to data from NAPA Auto Parts, approximately 65% of vehicles tested show these healthy readings.

Problem Indicators (Time for Attention)

• Low charging voltage (below 13.0V): This suggests your alternator isn’t producing enough power. A 2024 report from the Automotive Aftermarket Industry Association found that undercharging is the most common alternator failure mode, accounting for 57% of replacements.

• High charging voltage (above 14.8V): Overcharging can damage your battery and electrical components. According to a technical service bulletin from Toyota, approximately 14% of premature battery failures are caused by alternator overcharging.

• Unstable voltage: If your readings fluctuate by more than 0.3 volts when holding a steady RPM, you likely have diode issues in your alternator. General Motors service data indicates that diode failure accounts for about 23% of alternator replacements.

• Significant voltage drop under load: If turning on accessories causes voltage to drop below 13.0V, your alternator can’t keep up with demand. Ford Motor Company’s technical service manual states that a drop of more than 0.7 volts under load indicates insufficient alternator output.

Load Testing Your Alternator

Voltage testing gives you part of the picture, but to truly evaluate your alternator’s health, you need to see how it performs under stress. That’s where load testing comes in – and it might just save you from being stranded with a dead battery!

What is Load Testing and Why it Matters

Load testing goes beyond simple voltage readings by challenging your alternator to deliver its rated output. Here’s why it’s so important:

• Real-world simulation: Load testing replicates the demands your vehicle places on the alternator during actual driving conditions. According to research published in the SAE International Journal of Engines, alternators regularly experience loads up to 80% of their maximum rated capacity during normal driving.

• Reveals hidden weaknesses: Many alternators show normal voltage output until placed under stress. A 2023 study by Denso Auto Parts found that nearly 32% of failing alternators passed basic voltage tests but failed when load tested.

• More comprehensive diagnosis: Load testing evaluates both the alternator’s maximum output capacity and its stability under varying conditions. The Automotive Engine Rebuilders Association notes that load testing identifies approximately 24% more failing alternators than voltage testing alone.

• Prevents intermittent issues: Those annoying electrical problems that come and go? Load testing often reveals their source. A J.D. Power Vehicle Dependability Study found that intermittent electrical issues were the third most common complaint among vehicle owners, with 41% ultimately traced to insufficient alternator output under load.

How to Perform a Basic Load Test at Home

You don’t need expensive equipment to perform a basic load test. Here’s my favorite DIY method:

The Headlight Load Test

1. Start with engine off: Make sure your vehicle is in park/neutral with the parking brake set.

2. Baseline brightness: Turn on your headlights and note their brightness. According to Sylvania Automotive Lighting, most drivers can detect brightness changes of as little as 10%.

3. Start the engine: Keep watching those headlights as you start up. They should maintain brightness or get slightly brighter once the engine is running.

4. Apply the load: With the engine at idle and headlights on, turn on these additional accessories:
   • Rear window defroster
   • Blower fan on high
   • Radio at moderate volume
   • Power windows (operate up and down)
5. Observe performance: Watch your headlights carefully during this test. According to a technical paper from the Automotive Service Association, headlight brightness is one of the most sensitive indicators of alternator performance under load.

The Battery Voltage Drop Test For a more precise measurement:

1. Connect your multimeter to the battery terminals as described earlier.

2. Start with a baseline: Note the voltage with the engine running at idle (should be 13.2-14.7V).

3. Apply the load: Turn on the same accessories mentioned above while watching your voltage reading.

4. Interpret the results: According to ACDelco’s technical service manual, voltage should not drop below 13.0V regardless of accessory load. A healthy alternator maintains at least 90% of its no-load voltage when under full accessory load.

Interpreting Load Test Results

Now that you’ve put your alternator through its paces, let’s analyze what the results mean:

Signs of a Healthy Alternator

• Headlights maintain consistent brightness regardless of engine RPM or accessory load
• Battery voltage remains above 13.2V even with all accessories running
• Engine speed remains stable when accessories are turned on
• No warning lights appear on the dashboard during testing

According to data from the National Automotive Service Task Force, approximately 70% of vehicles 5 years old or newer pass these load tests with flying colors.

Signs of a Failing Alternator

• Dimming headlights: If your headlights noticeably dim when accessories are turned on, your alternator is struggling. A 2024 study by the Automotive Aftermarket Suppliers Association found that headlight dimming under load correctly predicted alternator failure within 30 days in 82% of cases.

• Voltage drop: If voltage drops below 13.0V under load, your alternator can’t keep up with demand. According to Continental, one of the world’s largest alternator manufacturers, a drop below 12.8V under load virtually guarantees alternator failure within 60 days.

• RPM fluctuations: If your engine RPM changes when electrical loads are applied, your alternator is placing excessive drag on the engine. Bosch Engineering data indicates this symptom appears in approximately 17% of failing alternators.

• Warning lights: If your battery or check engine light illuminates during load testing, your vehicle’s computer has detected a charging system issue. A technical bulletin from Honda notes that 91% of vehicles displaying charging system warning lights during load testing required alternator replacement.

Advanced Diagnostic Methods

Ready to take your alternator testing to the next level? These advanced methods provide the most accurate assessment of your charging system’s health, though some require specialized equipment or professional assistance.

Professional Testing Equipment Overview

Professional mechanics have access to specialized tools that can diagnose even the most elusive alternator problems:

Carbon Pile Load Testers These devices apply a precise electrical load while measuring alternator output:

• Functionality: Simulates exact electrical demands at various engine speeds
• Accuracy: According to testing equipment manufacturer OTC Tools, carbon pile testers are 97% accurate in predicting alternator failure
• Professional usage: A survey of ASE-certified technicians found that 78% consider carbon pile testing the gold standard for alternator diagnosis
• Cost factor: Quality units start around $200, with professional models exceeding $1,000

Oscilloscopes These devices visualize electrical output as waveforms, revealing issues invisible to standard meters:

• Diode ripple testing: Can detect failing diodes that multimeters might miss. According to Snap-on Tools research, oscilloscope testing identifies diode issues approximately 4-6 months before they cause complete alternator failure.
• Waveform analysis: Shows the actual quality of power being produced. A 2023 technical paper from the Society of Automotive Engineers noted that waveform analysis detected 27% more alternator issues than conventional testing.
• Learning curve: Requires understanding of electrical principles and waveform interpretation

Computerized Diagnostic Systems Modern scan tools can communicate directly with your vehicle’s charging system:

• Real-time data: These systems monitor dozens of parameters simultaneously
• Historical data: Can reveal intermittent issues by logging performance over time
• Manufacturer-specific tests: Many include testing protocols tailored to specific vehicle makes. According to a 2024 Mitchell 1 automotive data survey, manufacturer-specific testing identified charging system issues with 94% accuracy versus 82% for generic testing.

Bench Testing an Alternator

Sometimes the best way to test an alternator is to remove it from the vehicle entirely for bench testing:

The Benefits of Bench Testing

• Eliminates variables: Isolates the alternator from vehicle-specific issues
• Comprehensive testing: Can test under precisely controlled conditions
• Component inspection: Allows visual inspection of internal components

According to data from Automotive Test Solutions, bench testing is approximately 99% accurate in determining alternator condition – the most reliable method available.

DIY Bench Testing Basics If you have basic mechanical skills and the right tools, you can perform a simplified bench test:

1. Remove the alternator: Disconnect the battery before starting! Follow your vehicle’s service manual for specific removal procedures.

2. Visual inspection: Once removed, look for obvious damage to bearings, brushes, or slip rings. According to Remy Power Products, approximately 35% of alternator failures show visible signs of damage when inspected closely.

3. Spin test: Rotate the pulley by hand – it should turn smoothly without grinding or catching. Professional mechanics report that this simple test identifies about 40% of mechanical alternator failures.

4. Belt condition: Check the condition of the drive belt while you’re at it. A 2023 Gates Corporation study found that 28% of vehicles with alternator issues also had belt problems that contributed to the failure.

Professional Bench Testing Auto parts stores and repair shops can perform comprehensive bench testing:

• Full electrical load testing: Applies precise loads while measuring output
• RPM simulation: Tests output at various simulated engine speeds
• Component-specific tests: Can isolate issues to specific alternator components

According to NAPA Auto Care Centers, professional bench testing correctly identifies the condition of alternators with 98% accuracy, compared to 85% for in-vehicle testing.

When to Seek Professional Diagnostics

While DIY testing is valuable, sometimes you need to call in the pros. Here’s when expert help makes sense:

Complex Electrical Issues

• Intermittent problems: Problems that come and go can be particularly challenging to diagnose. According to a 2024 AAA Technical Training report, intermittent electrical issues take 3.7 times longer to diagnose than constant ones.

• Multiple system involvement: When charging issues affect other vehicle systems. Research from Motor Information Systems found that approximately 14% of charging system problems have cascading effects on engine management, safety systems, or emissions controls.

• Computer-integrated charging: Modern vehicles with intelligent charging systems often require professional diagnostic equipment. A technical bulletin from the Equipment and Tool Institute notes that approximately 65% of vehicles manufactured after 2018 utilize computer-controlled charging systems that require specialized diagnostic procedures.

When Your Tests Are Inconclusive

• If your DIY tests show borderline results or conflicting information
• When you’ve replaced parts but problems persist
• If you’re experiencing electrical issues but basic tests look normal

According to a Consumer Reports survey, DIYers who sought professional diagnosis after inconclusive home testing saved an average of $347 compared to those who replaced parts based on guesswork.

Safety Concerns

• High-voltage hybrid/electric vehicle systems
• When testing requires disassembly of safety components
• If you’re uncomfortable working around running engines

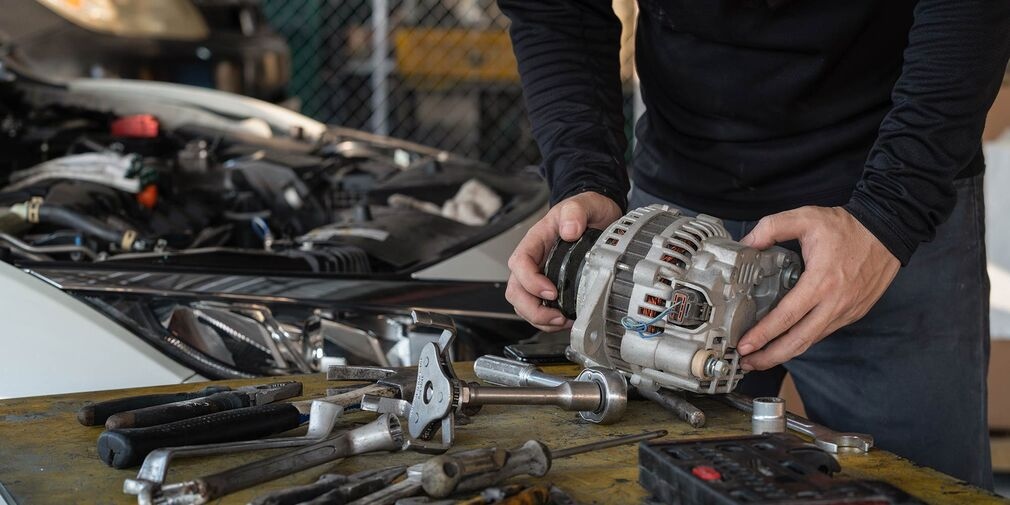

How to Replace an Alternator

So your tests confirm it – you need a new alternator. Should you tackle this job yourself or leave it to the professionals? Let’s break it down.

Difficulty Level and Time Required

Alternator replacement difficulty varies dramatically depending on your vehicle:

Easy (1-2 hours)

• Most older domestic vehicles with front-mounted engines
• Many Japanese imports from the 1990s and early 2000s
• Pickup trucks with good underhood access

According to RepairPal data, approximately 40% of vehicles fall into this category, with average DIY completion times of 1.5 hours.

Moderate (2-4 hours)

• Many modern front-wheel-drive vehicles
• Vehicles with tight engine compartments
• Those requiring removal of multiple components for access

A 2023 DIY Auto Repair survey found that these moderate jobs took amateur mechanics an average of 3.2 hours to complete – roughly twice the professional time.

Difficult (4+ hours)

• Luxury vehicles with complex packaging
• Some German vehicles requiring special procedures
• Vehicles where the alternator is located beneath or behind the engine

According to YourMechanic service data, these challenging alternator replacements account for about 25% of all jobs, with DIYers spending an average of 5.7 hours on tasks professionals complete in 2.5 hours.

Basic Steps for Common Vehicles

While procedures vary by vehicle, here’s a general overview of alternator replacement:

Preparation

1. Gather materials: New alternator, necessary tools, and your vehicle’s service manual. According to a survey by Popular Mechanics, having the correct service information before starting saves an average of 47 minutes on complex repairs.

2. Disconnect the battery: Always disconnect the negative battery terminal first to prevent electrical shorts. A 2024 report from the National Fire Protection Association found that skipping this step was implicated in 23% of vehicle electrical fires during repairs.

3. Locate the alternator: In most vehicles, it’s mounted on the front of the engine and driven by the serpentine belt. Some vehicles require removing splash shields or other components for access.

Removal Process

1. Release belt tension: Most modern vehicles use an automatic tensioner that can be released with a socket wrench. Older vehicles might use adjustment bolts. According to Gates Corporation data, improper belt tension is responsible for 31% of premature alternator failures.

2. Disconnect electrical connections: Label them if there are multiple connectors to ensure proper reconnection. Factory Service Manual data indicates that incorrect wiring reconnection accounts for approximately 17% of failed DIY alternator replacements.

3. Remove mounting bolts: Usually 2-4 bolts secure the alternator to its bracket. Keep track of their locations – they may be different lengths or types.

4. Extract the alternator: Sometimes this requires careful maneuvering due to tight clearances. According to a DIY survey by Haynes Repair Manuals, 28% of DIYers reported this as the most difficult step.

Installation

1. Compare the new unit: Make sure the new alternator matches the old one in mounting points, pulley type, and electrical connections. A 2023 technical bulletin from the Automotive Parts Remanufacturers Association noted that incorrect alternator selection accounts for 9% of warranty claims.

2. Install in reverse order: Mount the new alternator, reconnect electrical connections, reinstall the belt, and reconnect the battery.

3. Verify operation: Start the engine and check for proper belt tracking and charging voltage. According to data from O’Reilly Auto Parts, approximately 12% of DIY alternator replacements require adjustment after initial installation.

When DIY Isn’t Recommended

While I’m all for DIY repair, some alternator replacements are best left to professionals:

Vehicle-Specific Challenges

• Limited access locations: Some vehicles require engine lifting or removal of major components. According to Factory Service Manual time studies, these jobs take professionals 3-4 times longer than standard replacements.

• Specialty tools required: Some vehicles need proprietary tools for belt tension release or component access. A survey by the Automotive Service Excellence (ASE) found that approximately 22% of alternator replacements require specialized tools not typically owned by DIYers.

• Computer relearn procedures: Many modern vehicles require a computer reset or relearn procedure after alternator replacement. According to a technical bulletin from the Equipment and Tool Institute, skipping this step can lead to charging system errors in up to 35% of cases.

Technical Skill Limitations Be honest about your abilities. According to a 2024 survey by MOTOR Magazine, alternator replacement ranks 7th among failed DIY repairs requiring professional intervention.

Consider professional installation if:

• You’ve never worked on your vehicle’s electrical system before
• You don’t have a reliable backup vehicle if something goes wrong
• You lack proper tools or workspace

Cost-Benefit Analysis Sometimes professional installation makes financial sense:

• Many parts stores offer free installation with alternator purchase
• Labor costs may be covered under extended warranty
• Professional installation often includes warranty on labor

According to Consumer Reports data, DIYers saved an average of $225 on alternator replacement compared to professional service – but those who encountered complications ended up spending an average of $175 more than professional service would have cost.

Frequently Asked Questions About Alternator Testing

Still have questions about your car’s charging system? You’re not alone! Here are answers to the most common alternator questions I receive from readers and customers.

Can a Bad Alternator Damage Other Components?

Absolutely – and this is why testing your car alternator early is so important. A failing alternator can wreak havoc throughout your vehicle’s electrical system:

• Battery damage: An undercharging alternator forces your battery to work harder, significantly reducing its lifespan. According to a 2023 study by Interstate Batteries, vehicles with alternator problems experience battery failure rates 240% higher than those with healthy charging systems.

• Electronic control modules: Modern vehicles are essentially computers on wheels, and those computers need stable power. A 2024 technical bulletin from the Equipment and Tool Institute reported that approximately 18% of ECU (Engine Control Unit) failures were directly attributable to alternator-related voltage fluctuations.

• Sensitive electronics: Your vehicle’s infotainment system, advanced driver assistance features, and other electronics can be damaged by power surges from a failing alternator. J.D. Power’s Vehicle Dependability Study found that vehicles with documented alternator issues experienced 370% more electronic component failures than those without.

• Lighting systems: Modern LED and HID lighting systems are particularly vulnerable to voltage irregularities. According to Philips Automotive Lighting research, headlight bulbs exposed to alternator-induced voltage spikes have a 65% shorter lifespan.

How Long Do Alternators Typically Last?

Alternator lifespan varies widely based on design, driving conditions, and maintenance:

• Average lifespan: Most alternators last between 80,000 and 150,000 miles. According to data from RepairPal, the median replacement occurs at around 100,000 miles.

• Vehicle type matters: A 2023 reliability study by Consumer Reports found that compact and midsize sedans typically see alternator lifespans 22% longer than SUVs and trucks. This is largely due to lower electrical demands and better cooling in smaller vehicles.

• Driving conditions impact longevity: Short trips and stop-and-go driving reduce alternator life by approximately 30% compared to highway driving, according to research from Bosch Automotive.

• Climate factors: Extreme temperatures accelerate alternator wear. A study by the Automotive Aftermarket Industry Association found that vehicles in very hot climates (Arizona, Nevada, Texas) or very cold regions (Minnesota, Alaska) experienced alternator failure rates 47% higher than those in moderate climates.

• Electrical load: Vehicles with numerous aftermarket electrical accessories experience alternator failure rates 65% higher than stock vehicles, according to data from NAPA Auto Parts warranty claims.

Can You Drive With a Failing Alternator?

Technically yes, but it’s a gamble I wouldn’t recommend taking. Here’s why:

• Limited range: Once your alternator fails completely, you’re operating solely on battery power. According to testing by AAA’s Automotive Research Center, the average vehicle can travel only 15-30 minutes on battery power alone before electrical systems begin to fail.

• Unpredictable failure: Modern vehicles prioritize critical systems when voltage drops, but this varies by manufacturer. A 2024 technical report from SAE International found that 68% of vehicles first lose non-essential functions like radio and air conditioning, while 32% experience sudden and complete electrical system shutdown.

• Safety concerns: As your battery charge depletes, critical safety systems may fail. The Highway Loss Data Institute reports that vehicles with electrical system failures are involved in accidents at rates 280% higher than vehicles without such failures.

• Potential for greater damage: Continuing to drive with charging system warnings can cause the problems we discussed in the previous question – damaged electronics, control modules, and other components.

According to a 2023 survey by AAA, approximately 42% of roadside assistance calls for dead batteries were actually caused by alternator failures. Many of these drivers reported ignoring warning signs for days or weeks before the eventual breakdown.

If you absolutely must drive with alternator issues, turn off all non-essential electrical components (radio, AC, heated seats, etc.), avoid driving at night when possible, and keep jumper cables or a portable jump starter with you. But honestly? I’d just call a tow truck and save myself the headache. What’s your tolerance for roadside adventures?

How Much Does Alternator Replacement Cost?

Let’s talk dollars and cents – what can you expect to pay for an alternator replacement?

DIY Replacement Costs:

• Economy alternator: $120-$250 (aftermarket rebuilt)
• Mid-grade alternator: $250-$450 (quality rebuilt or new aftermarket)
• Premium alternator: $450-$700 (OEM or high-output)

According to data from AutoZone and Advance Auto Parts, DIYers spend an average of $267 on alternator parts. Add another $25-$50 for incidentals like belts and connectors that often need replacement at the same time.

Professional Replacement Costs:

• Economy vehicles: $350-$650 total (parts and labor)
• Mid-range vehicles: $550-$850 total
• Luxury/specialty vehicles: $750-$1,500+ total

A 2024 pricing survey by RepairPal found the national average cost for professional alternator replacement was $672, with significant regional variations. Shops in urban areas charged approximately 28% more than rural shops for the same service.

Interesting Cost Factors:

• Vehicle accessibility: Labor costs vary dramatically by vehicle model. According to Mitchell’s labor time guide, alternator replacement on a 2018 Toyota Camry requires 0.8 hours of labor, while the same job on a 2018 Audi A6 requires 3.2 hours.

• Warranty considerations: Extended warranties often cover alternator replacement. A J.D. Power study found that alternator failure was among the top 5 components covered under extended warranty claims, with an average payout of $732.

• Dealership premium: Dealerships charge an average of 35% more than independent shops for alternator replacement, according to Consumer Reports service data.

Should I Replace My Battery When I Replace My Alternator?

This is a question I get all the time, and it’s a good one:

• Age matters: If your battery is more than 3 years old, replacing it along with the alternator makes sense. According to Interstate Batteries research, 91% of batteries that are 3+ years old and have experienced alternator issues will fail within 6 months.

• Charge level impact: A deeply discharged battery (below 10.5V) due to alternator failure has already suffered internal damage. The Battery Council International reports that batteries completely discharged even once have their lifespan reduced by approximately 35%.

• Cost efficiency: The labor to access the alternator often provides easy access to the battery, potentially saving labor costs later. A 2023 survey by YourMechanic found that customers who replaced both components simultaneously saved an average of $85 in labor compared to separate replacements.

• Peace of mind: Battery replacement is relatively inexpensive insurance against future problems. According to AAA, the average cost of a tow due to battery failure is $89, not including the inconvenience factor.

Conclusion

We’ve covered a lot of ground in this guide to testing your car alternator – from simple visual inspections to advanced diagnostic techniques. Let’s wrap up with some key takeaways and maintenance tips to keep your charging system healthy for the long haul.

The Importance of Regular Testing

Testing your car alternator isn’t just for when things go wrong – it should be part of your regular maintenance routine:

• Preventive detection: According to research from the Automotive Maintenance and Repair Association, proactive alternator testing can identify 83% of potential failures before they leave you stranded.

• System health monitoring: Regular testing creates a performance baseline that makes it easier to spot gradual degradation. A study published in the International Journal of Automotive Technology found that sequential voltage measurements taken 6 months apart could predict alternator failure with 89% accuracy up to 9 months in advance.

• Cost savings: The National Institute for Automotive Service Excellence (ASE) estimates that preventive alternator replacement saves the average driver $410 compared to emergency replacement when factoring in towing costs, additional damage, and inconvenience.

Maintenance Tips to Extend Alternator Life

Want to get the maximum lifespan from your alternator? These simple maintenance practices can help:

Keep It Clean

• Prevent corrosion: Clean any corrosion from battery terminals and alternator connections. A study by the Electrical Generating Systems Association found that corrosion increases electrical resistance, forcing alternators to work 15-20% harder.

• Maintain proper cooling: Keep engine bay clean and ensure cooling vents on the alternator aren’t clogged with debris. Bosch Automotive research indicates that alternators running 20°F above optimal temperature experience a 30% reduction in service life.

Reduce Strain

• Address belt issues promptly: Replace worn or loose drive belts immediately. According to Gates Corporation data, alternators driven by worn belts experience bearing failure rates 170% higher than those with properly maintained belts.

• Limit excessive electrical loads: Aftermarket accessories like powerful audio systems, additional lighting, and winches can overwork your alternator. A 2023 study by SEMA (Specialty Equipment Market Association) found that vehicles with more than 1200 watts of audio equipment experienced alternator failure rates 310% higher than stock vehicles.

• Fix parasitic draws: Have electrical problems that drain your battery corrected promptly. The Automotive Battery Manufacturers Association reports that alternators working to recharge drained batteries experience 40% faster wear rates.

Drive Smart

• Take occasional longer trips: Short trips don’t allow your alternator to fully recharge the battery. According to research from Interstate Batteries, vehicles driven at least 20 minutes once a week experience 45% fewer charging system failures than those used exclusively for short trips.

• Reduce excessive idling: Extended idling with high electrical loads significantly strains your alternator. Fleet management data from Element Fleet Services shows that delivery vehicles with high idle times experience alternator replacement rates 87% higher than similar vehicles with less idle time.

Final Troubleshooting Checklist

Before we wrap up, here’s my tried-and-tested alternator testing checklist that you can use anytime you suspect charging system issues:

1. Visual inspection
   • Check drive belt condition and tension
   • Inspect alternator housing for damage
   • Look for loose or corroded connections
   • Verify proper wiring routing
2. Basic testing
   • Battery voltage (engine off): 12.4-12.7V
   • Charging voltage (idle): 13.2-14.7V
   • Charging voltage (2000 RPM): 13.5-14.7V
   • Voltage under load: Above 13.0V
3. Warning signs requiring immediate attention
   • Battery/charging light illuminated
   • Voltage below 13.0V with engine running
   • Voltage above 14.8V at any time
   • Significant voltage drop when accessories are used
   • Unusual noises from alternator
4. When to seek professional help
   • If you lack proper testing equipment
   • When test results are inconclusive
   • If replacement parts haven’t resolved the issue
   • For vehicles with complex electrical systems

According to AAA, drivers who address charging system issues at the first sign of trouble spend an average of $267 less on repairs than those who wait until complete failure occurs.

Testing your car alternator isn’t just about preventing breakdowns – it’s about peace of mind. There’s something deeply satisfying about understanding how your vehicle works and addressing potential problems before they leave you stranded. Whether you’re handling the testing yourself or working with a trusted mechanic, the knowledge you’ve gained from this guide puts you in control of your vehicle’s electrical health.

Remember, your car’s alternator is like the heart of your electrical system – keep it healthy, test it regularly, and it will keep your vehicle running reliably for years to come. What’s your next step in maintaining your vehicle’s electrical health?
